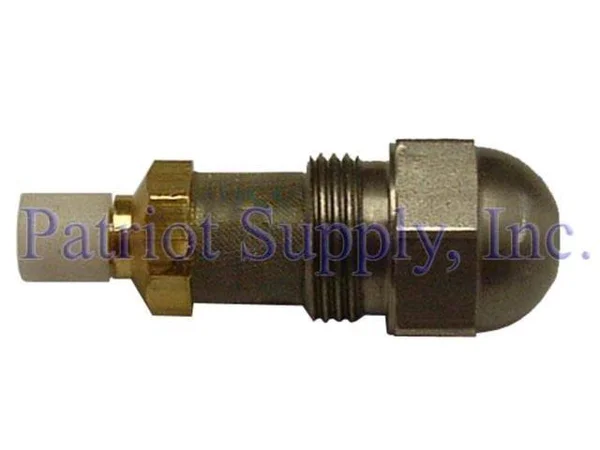

Monarch 13.50 Gallon 60 Degree BPS BY-PASS Nozzle 135060BPS

Description

The BPS nozzles are designed and tested for operation at 100 psi. The nozzle tip and disc are made of the same heat resisting, high chrome grade of stainless steel used in our simplex or regular domestic oil burner nozzles. The BPS nozzles are designed and tested for operation at 100 psi. line pressure, and at this pressure they will handle up to 70 S.S.U. operating viscosity oil. The nozzle tip and disc are made of the same heat resisting, high chrome grade of stainless steel used in our simplex or regular domestic oil burner nozzles. Spray angle widens 5 Degrees -10 Degrees with the by-pass wide open. It is possible to operate standard BPS nozzles up to 250 psi. Monarch 13.50 Gallon Per Hour 60 Degree BPS Bypass Nozzle (135060BPS, M135060BPS) Monarch 13.50 GPH 60 Degrees BPS Nozzle (Spray Pattern Is Semi-Solid) The BPS nozzles produce variable orifice flow rates by by-passing fluid from the nozzle. The orifice flow is regulated by controlling the by-pass line pressure. Both the capacity and spray angle rating are based on having the by-pass line closed. The BPS nozzles are designed and tested for operation at 100 psi. on #2 fuel oil, with the capacity and spray angle stamped on the nozzles at these conditions. on #2 fuel oil, with the capacity and spray angle stamped on the nozzles at these conditions. The combination locknut-strainer support is made of brass with a Monel strainer screen and a Viton „O“ ring.

Key Features

• The BPS nozzles are designed and tested for operation at 100 psi. on #2 fuel oil, with the capacity and spray angle stamped on the nozzles at these conditions.
• The BPS nozzles are designed and tested for operation at 100 psi.
• The nozzle tip and disc are made of the same heat resisting, high chrome grade of stainless steel used in our simplex or regular domestic oil burner nozzles.
• The combination locknut-strainer support is made of brass with a Monel strainer screen and a Viton „O“ ring.
• Monarch 13.50 Gallon Per Hour 60 Degree BPS Bypass Nozzle (135060BPS, M135060BPS) Monarch 13.50 GPH 60 Degrees BPS Nozzle (Spray Pattern Is Semi-Solid) The BPS nozzles produce variable orifice flow rates by by-passing fluid from the nozzle.
• The orifice flow is regulated by controlling the by-pass line pressure.
