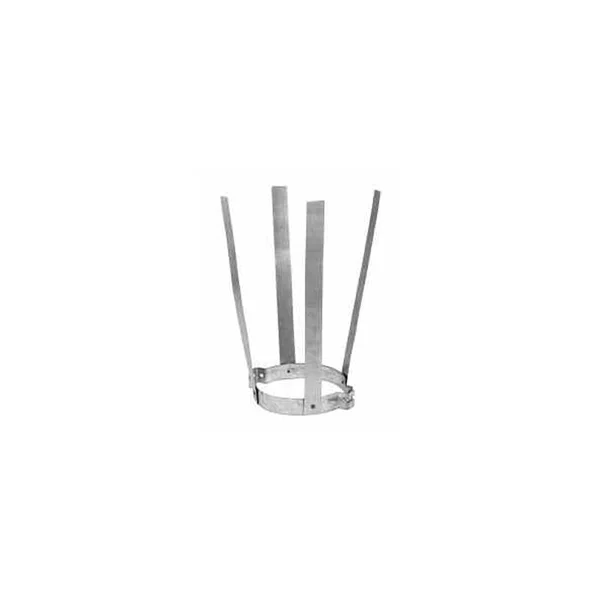

Metalbest 10s-ir Stainless Steel Sure-Temp 10 inch Class A Chimney Pipe Interior Resupport, Silver

Description

The Support Band is clamped around the chimney immediately below a Locking Band. The Sure-Temp Chimney System is designed to meet the needs of todays high-efficiency Wood Stoves and other appliances burning wood, oil or gas. The second means of support is used primarily when the immediate sections of the upper offset do not pass through a joist area and resupport is necessary. The first method is used at the immediate section of chimney above the upper elbow of an offset. With the appropriate Fire Stop/Joist Shield (JS) in place, clamp the support band around chimney and attach with 6 sheet metal screws. Components may be combined in a wide variety of ways to solve almost any chimney installation requirement. 10 Class A Chimney Pipe Interior Resupport Band from Sure-Temp Interior resupport assembly allows for two different methods of chimney resupport. In both methods, the straps are nailed to suitable framing at 2 clearance. The 18' limit of supportable chimney length applies. Materials: Stainless steel Clearance: 2 to combustibles Allowable Flue Gas Temperatures: Maximum Continuous: 1,000 Degrees Fahrenheit / 540 Degrees Celsius Brief Forced Firing: 1,400 Degrees Fahrenheit / 760 Degrees Celsius (60 min.). Features: Materials: Stainless steel Clearance: 2 to combustibles Allowable Flue Gas Temperatures: Maximum Continuous: 1,000 Degrees Fahrenheit / 540 Degrees Celsius Brief Forced Firing: 1,400 Degrees Fahrenheit / 760 Degrees Celsius (60 min.) Creosote Burn.

Key Features

• The Sure-Temp Chimney System is designed to meet the needs of todays high-efficiency Wood Stoves and other appliances burning wood, oil or gas.
• The Support Band is clamped around the chimney immediately below a Locking Band.
• 10 Class A Chimney Pipe Interior Resupport Band from Sure-Temp Interior resupport assembly allows for two different methods of chimney resupport.
• The second means of support is used primarily when the immediate sections of the upper offset do not pass through a joist area and resupport is necessary.
• With the appropriate Fire Stop/Joist Shield (JS) in place, clamp the support band around chimney and attach with 6 sheet metal screws.
• Materials: Stainless steel Clearance: 2 to combustibles Allowable Flue Gas Temperatures: Maximum Continuous: 1,000 Degrees Fahrenheit / 540 Degrees Celsius Brief Forced Firing: 1,400 Degrees Fahrenheit / 760 Degrees Celsius (60 min.).
