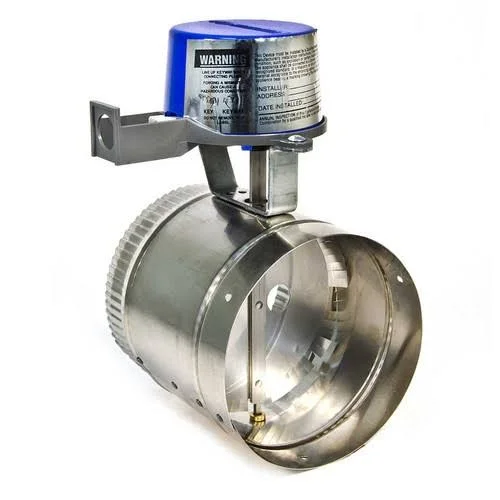

Field Controls 46487101 6 in GVD GAS Vent Damper

Description

Hold open switch allows damper to be placed in an open position and taken out of service to assist with trouble shooting appliance problems. Keyed wiring harness connector plug installs only one way, preventing incorrect wiring connection. Product Features: Operates with all 24 VAC, 60hz intermittent ignition and standing pilot ignition systems. Stainless steel construction provides corrosion resistance. Specifications Diameter (Inches): 6" Width: 10-7/8" Length (Inches): 6-1/2" Application: Air Quality Voltage: / 24v Clearance: 1-3/16" Exposed Pipe: 5-1/4" Motor Timing: 15 Seconds Power Open 15 Seconds Power Closed Shape: Round. Stainless steel construction provides superior corrosion resistance. Stainless steel construction provides corrosion resistance. Damper operation: power opens in 15 seconds, power closes in 15 seconds. Specifications Diameter (Inches): 6" Width: 10-7/8" Length (Inches): 6-1/2" Application: Air Quality Voltage: / 24v Clearance: 1-3/16" Exposed Pipe: 5-1/4" Motor Timing: 15 Seconds Power Open 15 Seconds Power Closed Shape: Round. Power is off at damper motor when it is at rest.

Key Features

• Hold open switch allows damper to be placed in an open position and taken out of service to assist with trouble shooting appliance problems.
• Specifications Diameter (Inches): 6" Width: 10-7/8" Length (Inches): 6-1/2" Application: Air Quality Voltage: / 24v Clearance: 1-3/16" Exposed Pipe: 5-1/4" Motor Timing: 15 Seconds Power Open 15 Seconds Power Closed Shape: Round.
• Keyed wiring harness connector plug installs only one way, preventing incorrect wiring connection.
• Damper operation: power opens in 15 seconds, power closes in 15 seconds.
• Stainless steel construction provides corrosion resistance.
• Product Features: Operates with all 24 VAC, 60hz intermittent ignition and standing pilot ignition systems.
