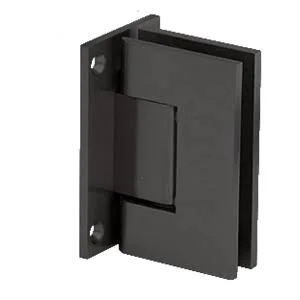

CRL GEN037MBL Matte Black Geneva 037 Series Wall Mount Full Back Plate Standard Hinge Shower Door Hardware

Description

(54 kg) with a maximum door width of 32" (813 mm). Cut-out dimensions for CRL hinges may not match those of other brands. GEN13 Gasket Pack must be purchased separately for use with 5/16" (8 mm) thick tempered glass. In addition Custom Pivot Pins are available to accommodate "off-angle" installations. If the 5 Degree Reversible Pivot Pin contained in the hinge does not assist in closing the door to the position desired you may specify the angle needed for a Custom Pivot Pin (up to 45 degrees). Made of solid brass with all moving parts (pins and springs) in stainless steel. Custom finishes are available on request. A variety of six styles gives design flexibility including three different Wall Mount and three different Glass-to-Glass types. SPECIFICATIONS: Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass Special Feature: Offers choice of Standard Model factory set at standard 0 degree closing position or 5 degree Pre-Set Model for tighter closure into. (36 kg) with a maximum door width of 28" (711 mm). The opposite side is marked 85 Degrees. The Pin can be rotated (not flipped upside down) to activate the other side. Your glass sizes and the aesthetics of the enclosure may be affected by the use of the Custom Pivot Pin. Important Notes: CRL Shower Door Hinges are designed for residential or hotel shower use. Use only the template included with this hinge. The CRL Geneva Series of professional Hinges is able to accommodate 5/16" (8 mm) to 1/2" (12 mm) glass.

Key Features

• Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs.
• SPECIFICATIONS: Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass Special Feature: Offers choice of Standard Model factory set at standard 0 degree closing position or 5 degree Pre-Set Model for tighter closure into.
• GEN13 Gasket Pack must be purchased separately for use with 5/16" (8 mm) thick tempered glass.
• Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs.
• The CRL Geneva Series of professional Hinges is able to accommodate 5/16" (8 mm) to 1/2" (12 mm) glass.
• Made of solid brass with all moving parts (pins and springs) in stainless steel.
