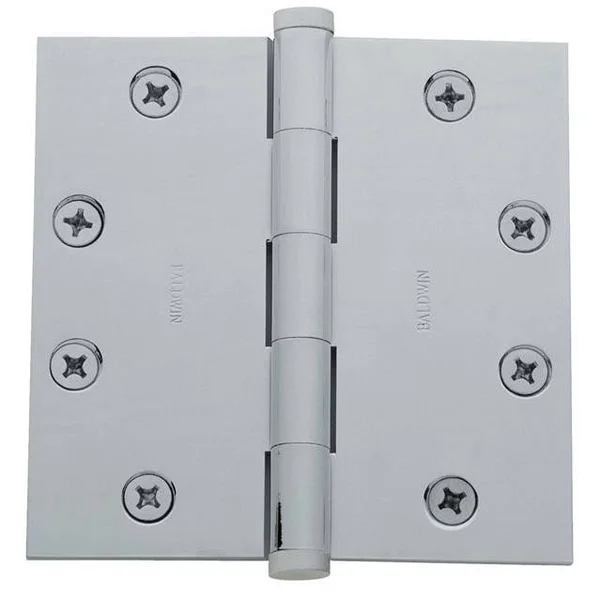

Baldwin Hinge 4.5 x 4.5 Sqr Corner NRP DORB

Description

Baldwin’s extruded hinges are machined from a solid brass bar to exact tolerances to ensure an even wear between each knuckle. Baldwin full mortise hinges are classified as STANDARD WEIGHT for installation on doors up to 1.75-Ą (44mm) in thickness. The result is a QUALITY hinge which can withstand above average door weights and stresses with maximum vertical and lateral wear performance. Hinge finials are specially designed to thread into the top and bottom of the hinge barrel, preventing the pin from rising out of the hinge barrel. Hinges are furnished standard with button design finials. Supplied in Singles. Supplied with fixings. This special application is used when the hinge barrel is exposed to the exterior side of a building (Reverse Bevel Door Conditions). Each hinge is beveled on the inside leaf to obtain a tight fit when viewing the hinge in a closed position, and furnished with stainless steel, rust-proof pins for added durability. Hinges manufactured from solid brass extrusions have two inherent properties: exceptional strength and precision tolerances. All full mortise hinges are supplied standard with appropriate size wood. The pin “floats” within the barrel of the hinge, yet is held in a stationary position. Knuckles are milled to a clearance of 0.010-Ą (.25mm) to minimize vertical wear. Pins can be removed by unthreading each finial and tapping the pin upward from the bottom of the barrel. A stainless s. Square Corner Hinge, 4.5" x 4.5".

Key Features

• Each pin is manufactured from precision ground Type 302, stainless steel material to prevent corrosion.
• Each hinge is beveled on the inside leaf to obtain a tight fit when viewing the hinge in a closed position, and furnished with stainless steel, rust-proof pins for added durability.
• Baldwin full mortise hinges are classified as STANDARD WEIGHT for installation on doors up to 1.75-Ą (44mm) in thickness.
• Use three hinges on doors up to and including 7.5 feet (2.3m) and one additional hinge for each additional 2.5 feet (.76m) or fraction thereof.
• All full mortise hinges are supplied standard with appropriate size wood.
• Knuckles are milled to a clearance of 0.010-Ą (.25mm) to minimize vertical wear.
