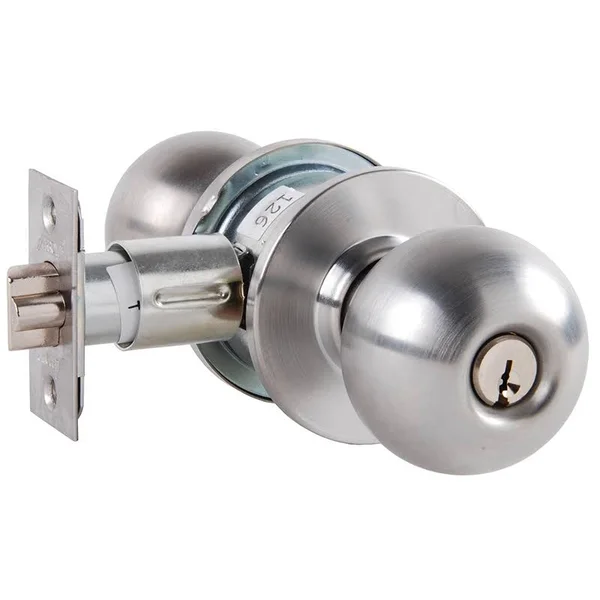

Arrow MK12TA 26D Cylindrical Lock

Description

Conventional cylinders are also available in a variety of competitive manufacturer’s keyways. Latch housing is steel, with zinc dichromate finish for corrosion resistance. Standard faceplate for 2-3/8” (60.32.mm) backset measures 2-1/4” (57.15mm) x 1” (25.40mm) with a flat front, for 2-3/4” (69.85mm) backset standard faceplate measures 2-1/4” (57.15mm) x 1-1/8” (28.57mm) with beveled front 1/8” (3.17mm) in 2” (50.8mm). Standard “T” strike measures 2-3/4" (69.85mm) x 1-1/8" (28.57mm). Cylinder, Standard – Solid brass 6 pin cylinder with Arrow “A” keyway, keyed to 5 pin for stock. Lock Chassis – Cold rolled steel with zinc dichromate finish for corrosion resistance. Arrow MK Series offer the designer, architect and contractor simple solutions to accessibility requirements. Strike – Brass, bronze or stainless steel. Available in Schlage CS keyway and other competitive keyways. Supplied with two 5 pin brass keys for stock. The Arrow MK Series has a clear design and is a simple solution to accessibility requirements. Backset – 2-3/8" (60.32mm) standard. Handing– Reversible. Their clean designs, architectural finishes and available functions make them ideal for commercial applications where heavy duty grade one hardware may not be necessary. Can be masterkeyed, grandmaster keyed and construction masterkeyed. 7/8" (22.225mm) bore in edge of door is required. All strikes have a 1-1/4" (31.75mm) lip to center dimension. Door Thickness – 1-3/8" (34.92mm) to 1-3/4" (44.45mm).

Key Features

• Door Thickness – 1-3/8" (34.92mm) to 1-3/4" (44.45mm).
• Standard faceplate for 2-3/8” (60.32.mm) backset measures 2-1/4” (57.15mm) x 1” (25.40mm) with a flat front, for 2-3/4” (69.85mm) backset standard faceplate measures 2-1/4” (57.15mm) x 1-1/8” (28.57mm) with beveled front 1/8” (3.17mm) in.
• 2-3/4" (69.85mm), 3-3/4" (95.25mm) and 5" (127mm) available.
• Optional ANSI A115.1 strike measures 4-7/8" (123.82mm) x 1-1/4" (31.75mm).
• Standard “T” strike measures 2-3/4" (69.85mm) x 1-1/8" (28.57mm).
• Requires standard 2-1/8" (53.97mm) bore through door.
