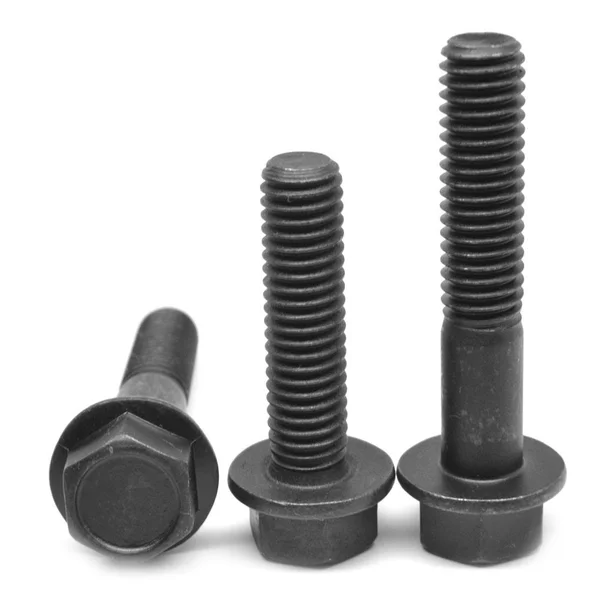

5/16-18 x 1 1/4 Coarse Thread Grade 8 Hex Flange Screw Alloy Steel Thermal Black Oxide

Name: 5/16-18 x 1 1/4 Coarse Thread Grade 8 Hex Flange Screw Alloy Steel Thermal Black Oxide
Brand: ASMC Industrial
SKU: SKU-E5A7217C48E6
Price: 23.44 CAD
Availability: InStock

SKU: SKU-E5A7217C48E6

List Price: C$78.12

C$23.44 SAVE C$54.68 (70%)

Price includes all taxes

In Stock — Ready to Dispatch

Shipping calculated at checkout · Delivery timing is shown in the shipping policy
30-Day Returns · Eligibility rules apply
Secure Checkout · SSL encrypted payment

View shipping policy →

Quantity

Eligible items may be returned within 30 days. See the return policy for conditions.

Payment Method

Cash on Delivery — pay when your order is delivered.

Product Details

About this product

Description

Flange screws distributes holding pressure by having a circular shaped flange (external ridge) under the head so that the screw is less likely to come loose; non-serrated variety is also known as a frame bolt. PRODUCT SPECIFICATIONS Part #: 0000-181940 Fastener Type: Hex Flange Screw Size Description: 5/16-18 x 1 1/4 Diameter/Nominal Size: 5/16 Length: 1 1/4 Wrench Size/Across Flats: 1/2" (0.489-0.5000") Width Across Corners: 0.548-0.577" Head Height: 0.320" Flange Diameter: 0.680" Flange Thickness. Part #: 0000-181940. Buy as few as 100 pcs. Part #: 0000-181940. Buy as few as 100 pcs. Discounts on larger quantities. PRODUCT SPECIFICATIONS Part #: 0000-181940 Fastener Type: Hex Flange Screw Size Description: 5/16-18 x 1 1/4 Diameter/Nominal Size: 5/16 Length: 1 1/4 Wrench Size/Across Flats: 1/2" (0.489-0.5000") Width Across Corners: 0.548-0.577" Head Height: 0.320" Flange Diameter: 0.680" Flange Thickness: 0.050" Thread Pitch: 18 Thread Pitch Type: Coarse Thread Direction: Right System of Measurement: Inch Grade: 8 Material: Alloy Steel Finish: Thermal Black Oxide Head Type: Hex Flange Drive Type: External. Flange screws distributes holding pressure by having a circular shaped flange (external ridge) under the head so that the screw is less likely to come loose; non-serrated variety is also known as a frame bolt. Discounts on larger quantities.

Key Features

Part #: 0000-181940.
Buy as few as 100 pcs.
Flange screws distributes holding pressure by having a circular shaped flange (external ridge) under the head so that the screw is less likely to come loose; non-serrated variety is also known as a frame bolt.
PRODUCT SPECIFICATIONS Part #: 0000-181940 Fastener Type: Hex Flange Screw Size Description: 5/16-18 x 1 1/4 Diameter/Nominal Size: 5/16 Length: 1 1/4 Wrench Size/Across Flats: 1/2" (0.489-0.5000") Width Across Corners: 0.548-0.577" Head.
Discounts on larger quantities.
